WB Micro Cyclodal Reducer

WB Micro Cyclodal Reducer

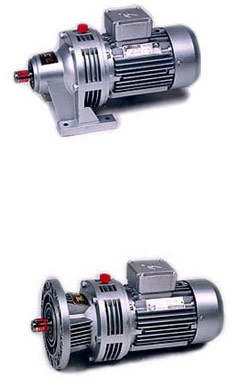

WB series micro cycloid gearmotor (Alloy Aluminium) features:
1.WB series micro cycloidal gearmotor is a reducer designed by cycloid needle teeth coupled planetary transmission principle. Simple structure, convenient operation, little maintenance
2.Aluminium alloy housing,design in small size ,steady running,low noise,high efficiency.
3.The products have been mainly used in light industrial fields, such as foods, beverage,pharmaceutical, leather, printing, packaging,etc.

Type and specification:
WB65,WB85,WB100,WB120,WB150,WB1065,WB1285,WB1510

Main Parameter:
Output speed: 0.16~161rpm
Output torque: up to 350Nm
Motor power: 0.04~3kw
Input form: directly connected with motor, flange input or shaft input.
Installation Form: Horizontal or Vertical.

Fast selection:

Model Shaft Dia. Center Height
(mm)		 Output Flange Dia.
(mm)		 Power
(kw)		 Ratio Permitted Torque
(Nm)		 Weight
(KGS)
Solid(mm)
WB65 12 60h13 120 0.04~0.12 11~59 40 1.5
WB85 14 70h13 140 0.09~0.37 9~71 90 2
WB100 18 80h13 160 0.18~0.75 7~87 170 3.5
WB120 30 100h13 190 0.25~1.5 7~101 250 6
WB150 35 120h13 230 0.37~3 7~121 350 12.5
WBE1065 18 80h13 160 0.04~0.12 121~5133 170 5.5
WBE1285 30 100h13 190 0.09~0.37 121~5959 250 9
WBE1510 35 120h13 230 0.18~0.37 121~5959 350 18

Remark: the weight without oil and motor, shaft and flange input add 10%.

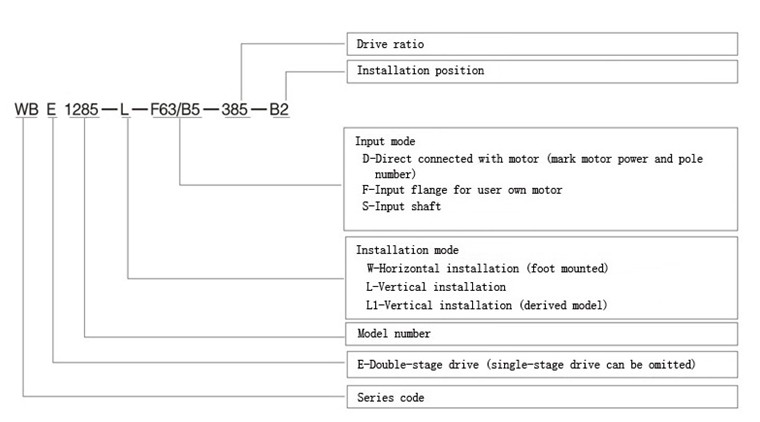

Model explanation:

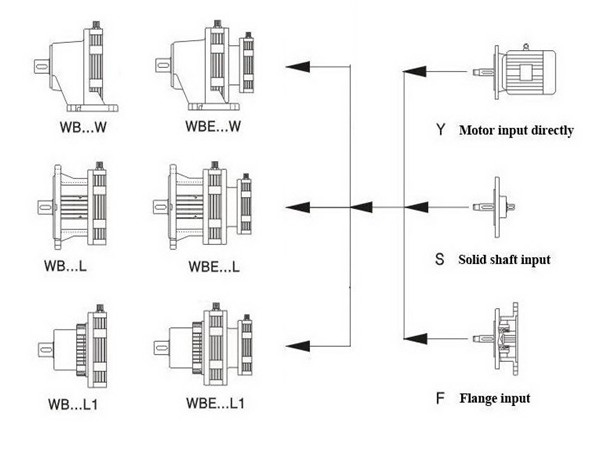

Structural style:

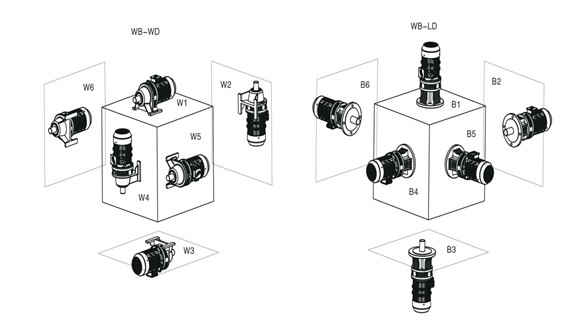

Installation position:

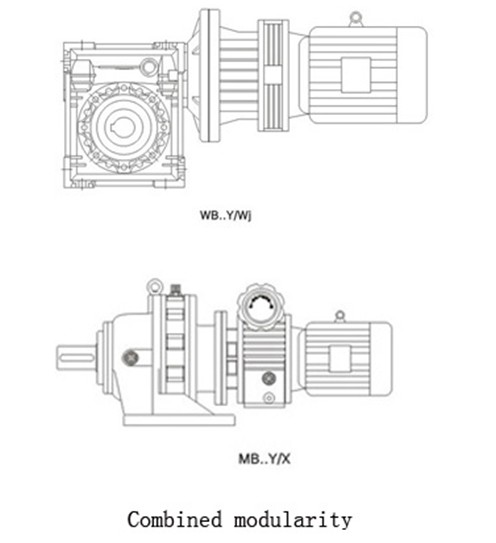

Combined modularity:
