TC Spiral Bevel Gearbox

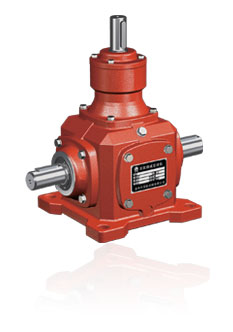

TC Spiral Bevel GearboxTC series spiral bevel gearbox (commutator)features:
1. TC series spiral bevel gearbox is a transmission gearbox adopting spiral bevel to have the function of commutator, steady running and with large transmission torque.
2. It is used for transmission in line or synchronized lift equipment

Type and specification: TC2~TC25

Main Parameter:
Output speed: 0.1~1450rpm
Output torque: up to 5000Nm
Motor power: 0.18~90kw
Shaft configuration：1-in & 1-out，1-in & 2-out，2-in & 1-out，2-in & 2-out

Fast selection:

Model Shaft Dia. Center Height
 (mm)		 Power
(kw)		 Ratio Permitted Torque
(Nm)		 Weight
(KGS)
Solid (mm)
TC2 15k6 52h13 0.06~2.2 1:1~1:2 30 2.2
TC4 19k6 76h13 0.12~5.5 1:1~1:2 50 11
TC6 25k6 92h13 0.12~15 1:1~1:5 120 20
TC7 32k6 100h13 0.18~22 1:1~1:5 210 32
TC8 40k6 115h13 0.25~45 1:1~1:5 300 50
TC10 45k6 140h13 0.55~75 1:1~1:5 520 80
TC12 50k6 175h13 0.75~90 1:1~1:5 700 125
TC16 60m6 200h13 1.1~110 1:1~1:5 2000 190
TC20 72m6 245h13 1.5~200 1:1~1:5 5000 300

Remark: the weight without oil, double shaft add 10%.

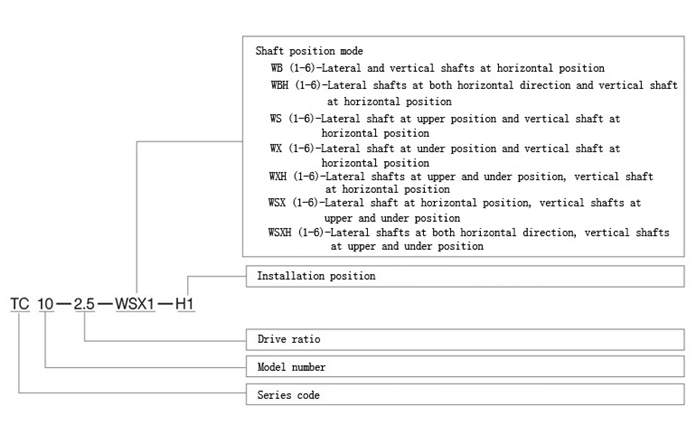

 Model explanation:

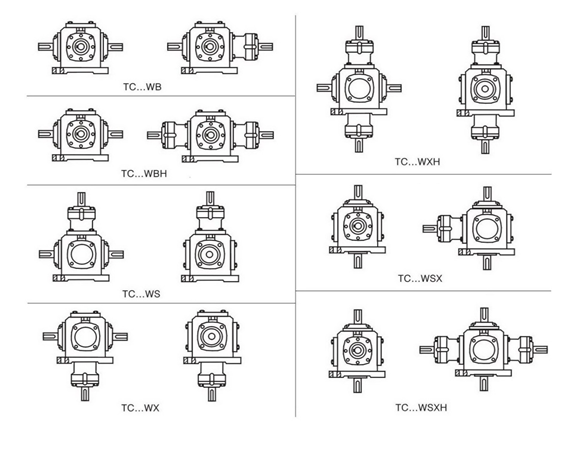

Structural Style:

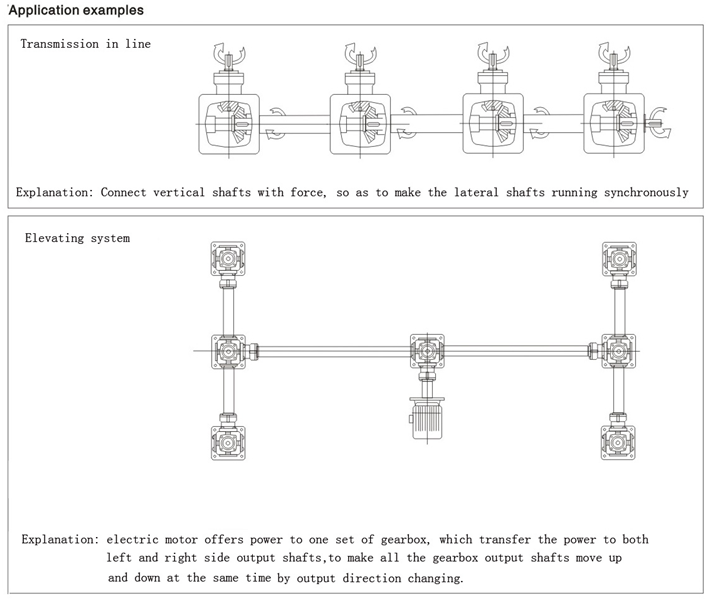

Application example:
:
